Sku: PMD003

PM-DMX1 Pan Motor for Crisp Max

Regular price
$400.00
Regular price
Sale price
$400.00
Shipping calculated at checkout.
Vendor: Magmatic

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

This pan motor allows you to move the snowfall from an Elation Magmatic Crisp Max snow machine.

From the Manufacturer:

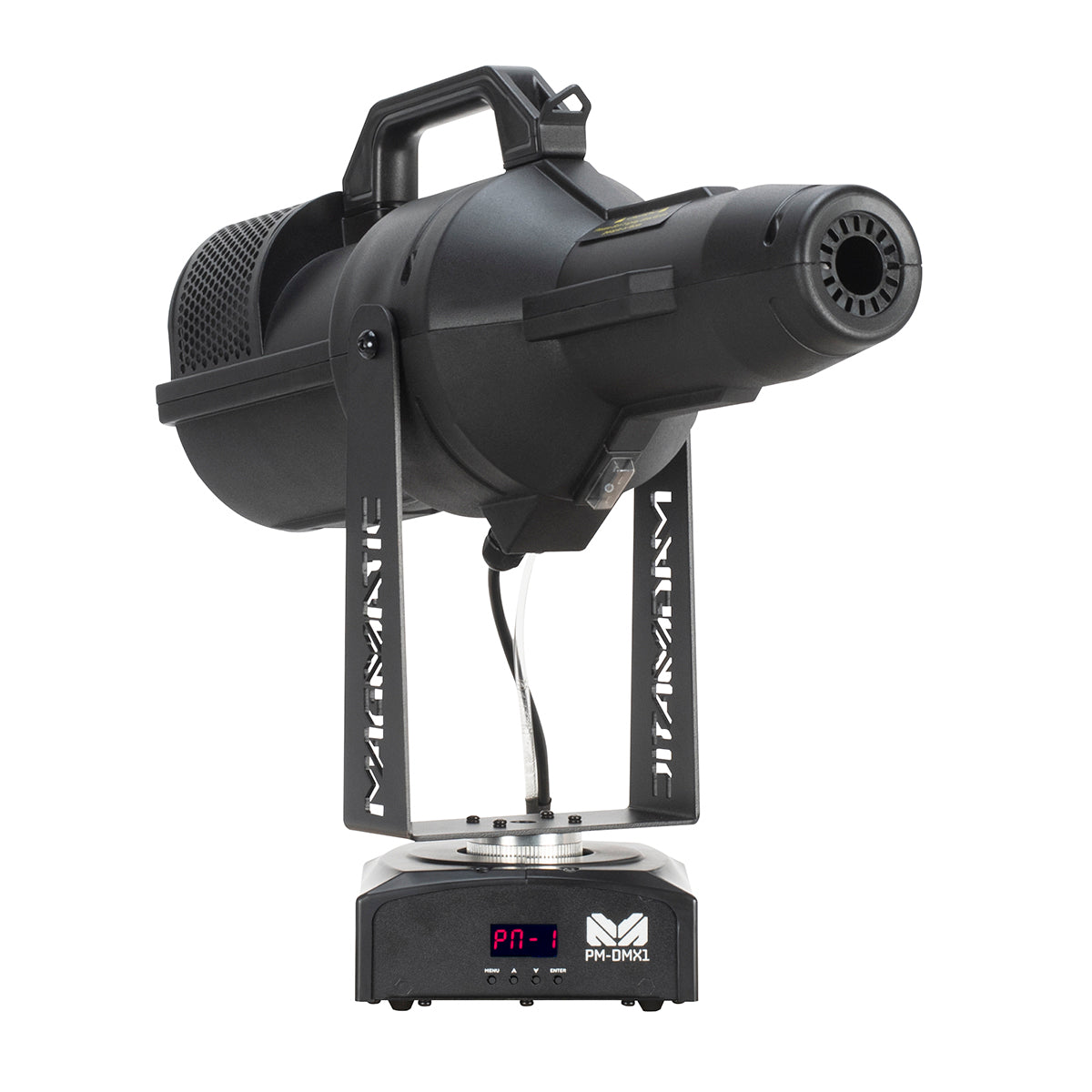

Magmatic PM-DMX1™ is an optional pan motor accessory for the Magmatic Crisp Max™ Snow Machine. Install the output nozzle of the Crisp Max, using the included mounting bracket, onto the PM-DMX1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit.
The PM-DMX1 features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60°, 90°, 120°) each having 5 speed settings, a pan inversion mode which inverts the pan movement, primary / secondary modes, 5pin DMX in/out for easy control connection and linking multiple units, an included mounting bracket that better balances weight distribution of the Crisp Max nozzle unit, mini-omega bracket so PM-DMX1 can be clamped and /truss mounted, and a 100-240V auto switching power supply.

In the Box:

  • (1) PM-DMX1
  • (1) Locking Power Cable
  • (1) Nozzle Bracket

Features:

  • 120 Degrees of Pan Movement
  • Manual and DMX-512 Control
  • 2 DMX Channel Modes
  • Primary/Secondary Modes
  • 60°, 90°, 120° Auto-Pan Programs
  • 5 Auto-Pan Program Speeds
  • Pan Inversion Mode
  • Holds up to 35lbs.
  • Includes Mounting Bracket for Crisp Max Nozzle
  • Includes Omega Bracket for clamp / truss mounting

    Tech Specs

    Control

    DMX Channel Modes: 1 / 2

    DMX 3-Pin Connectors?: No

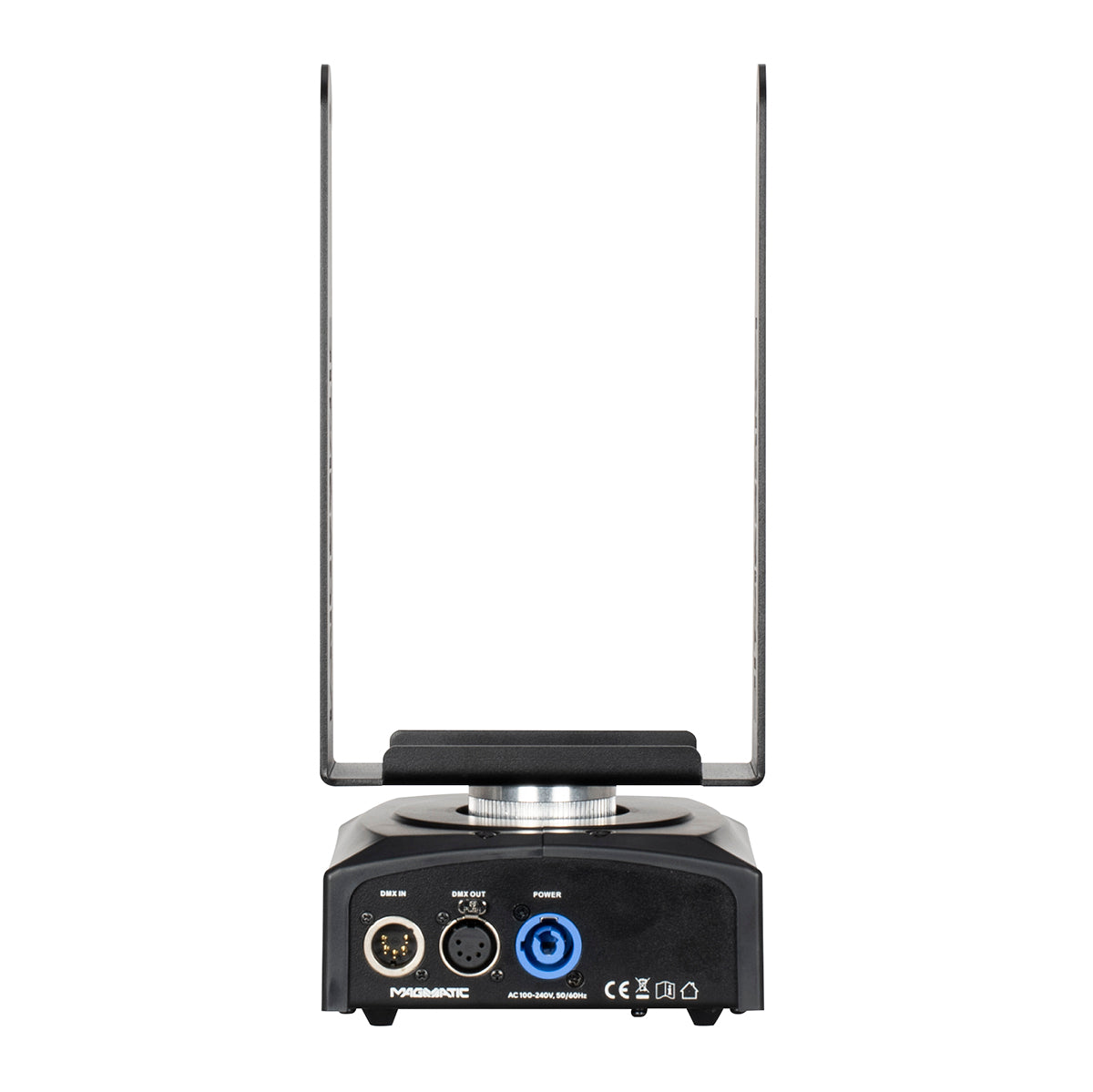

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 5.8 in

    Width: 6.4 in

    Height: 14.2 in

    Weight: 4 lb

    Electrical

    Voltage Range: 100 - 240 VAC 50/60Hz

    Maximum Wattage: 11w

    Power Cable Connector - Fixture Side: PowerCON

    Main Power Connector on Included Cable: Edison

    Warranty

    Warranty: 2 Years
